The EnGenius ECW516L arrives a 12 months after the flagship ECW536 hit the market and it does have a distinct position than to solely showcase technological improvement. It’s attempting to make WiFi 7 inexpensive for anybody prepared to undertake this nonetheless pretty younger normal. A purpose that’s additionally the main target of Zyxel with its NWA110BE. However the EnGenius Cloud Lite ECW516L does issues a bit in a different way.

We do get a 2.5GbE port, assist for 320MHz channel width on the 6GHz radio and, in fact, we do get a tri-band configuration. However what’s completely different from the NWA110BE is that you need to use each the 5GHz and the 6GHz radios on the identical time, no want to decide on between them. Oh, and there’s assist for MLO which was and nonetheless is to a sure prolong a wanted characteristic that’s specific to the WiFi 7 entry factors. Now let’s speak concerning the value.

The EnGenius Cloud Lite ECW516L has an MSRP of $199 which is pretty low contemplating the specs, however it does have the TP-Hyperlink EAP773 respiration down its neck, so I’m curious to see the efficiency of this new WiFi entry level. Let’s put it to the check.

The Design and Construct High quality

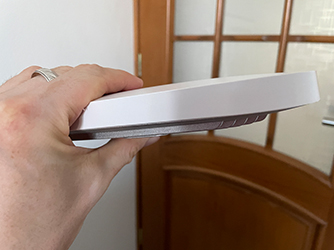

Design-wise, whereas retaining the core parts of the ECW536, the ECW516L is nearer to the ECW230 and ECW230S. The case is smaller, with a plastic high and a metallic backside. It’s additionally a lot slimmer than the ECW536, so will probably be a bit extra unobtrusive on the ceiling.

And sure, this can be a ceiling-mount-only WiFi 7 entry level, it received’t sit correctly on the desk. You do get the bracket within the bundle, however not a lot else. A separate PoE adapter or PoE change is important, though the latter just isn’t obligatory contemplating that the system does have a 12V DC port out there. It’s positioned subsequent to the one 2.5GbE Ethernet port that does assist PoE, clearly. And there’s additionally a Reset button as nicely.

All these will be discovered throughout the bottom-placed devoted space. Flip the system again to the highest and we will see a return to the a number of LED ports which is a welcomed change from the single-LED system of the ECW536.

The Thermal Administration

The metallic backside half paired with the plastic high have been a reasonably dependable system utilized by EnGenius over the previous years and I used to be curious whether or not it labored nicely for the Cloud Lite ECW516L as nicely. I didn’t have the AGM cellphone out there this time, so I switched to a small Xinfrared module for an Android cellphone. And you may see what I used to be in a position to seize right here.

The outcomes are good, for the reason that entry level has an excellent warmth distribution and there doesn’t appear to be any indicators that it could overheat or throttle on account of excessive temperature.

EnGenius Cloud Lite ECW516L Teardown

EnGenius has just about all the time made the teardown course of as simple as doable and that’s true for the ECW512L the place I solely wanted to take away 4 screws to ensure that the plastic half to come out. After which we’re greeted by the rear facet of the PCB and EnGenius determined to place right here the antenna connectors.

Earlier than the rest, I made a decision to detach them after which I checked beneath the three aluminum covers. No main element right here, so let’s verify the opposite facet. I might instantly see the 2 flash storage chipsets, one was a 256MB NAND flash MXIC X241952 MX35LF2GE4AD-Z43 chip and the opposite a 128MB serial NOR flash Winbond 25Q128JVSQ 2251 chip. Now we have to take away the remainder of the aluminum covers to show the principle parts. And you may see within the following desk what I used to be in a position to establish.

{Hardware} Comparability

Single Consumer Assessments (6GHz & 5GHz)

I admit I used to be getting accustomed to see values nearer to 2Gbps, so seeing that the EnGenius ECW516L solely obtained above 1Gbps very close to the consumer system was a little bit of a letdown. I’ve additionally included the values collected when the 6GHz radio was utilizing both the 160MHz and the 320MHz, and we will see that going near that 21m or 70 toes mark dropped the connection utterly.

And that true each upstream and downstream. Utilizing the 5GHz radio and counting on a WiFi 6 and one WiFi 5 consumer system did present that the sign can attain farther.

That is confirmed by the sign attenuation graphics as nicely.

And sure, I’m speaking about it being each upstream and downstream.

The one point out that I have to make is that the 5GHz radio doesn’t assist the 160MHz channel bandwidth, however it’s restricted to solely the 80MHz width. I imply, in a crowded surroundings, you’re not going to have the ability to use the 160MHz channel width, however when you have fewer neighbors and fewer interference, then this can be a characteristic that you just’re going to note that it’s lacking.
OK, now let’s see how the entry level fares when put subsequent to different gadgets.

When utilizing the 5GHz radio, we will see that the ECW512L sits above the U7 Professional and instantly beneath the TP-Hyperlink EAP773. Truthful efficiency.

Subsequent, utilizing the 6GHz radio, 320MHz, the ECW516L does take a decrease place, solely above the ECW536. I’ve additionally included a longer-term efficiency graphic only for funsies.

Single Consumer Assessments (2.4GHz)

We’re not going to maneuver previous the two.4GHz radio efficiency, however I’ll solely be utilizing a few shoppers and simply the upstream graphic.

If you need the downstream values as nicely, remark beneath, in any other case I’ll assume it’s sufficient. I’ve additionally included the sign attenuation graphic because it’s extra vital that the distance-based values.

That is how one can truly reproduce my efficiency. And lastly, I put the EnGenius ECW516L in opposition to different entry factors as soon as extra and it sits beneath the EAP773 which is honest, however probably not spectacular.

The Multi-Consumer Assessments

Let’s now transfer on to the multi-client check outcomes and, as earlier than I used net-hydra developed by Mr Jim Salter. I used the identical consumer gadgets as with different entry factors to assist the comparability between fashions simpler. It will have been higher to have similar consumer gadgets, however prices could be too excessive to make it value it.

I began with the concurrent 1080p streaming visitors and two shoppers did nicely, the WiFi 7 one and one of many two WiFi 6 laptops. The remaining rose too excessive and didn’t present a usable latency.

Then once more, it did higher than the NWA110BE. Subsequent, I ran 4K streaming visitors on the 5 consumer gadgets and the latency was greater than 100ms on a regular basis whatever the system, so not a good suggestion to run this kind of visitors on 5 consumer gadgets.

As a comparability, the NWA110BE did a bit higher right here.

Transferring ahead, I saved the 1080p streaming visitors and ran intense looking alongside it. And once more, we get to see two consumer gadgets doing higher than the remainder.

I additionally checked the extraordinary looking graph and all shoppers stood beneath 500ms for 95% of the time, however three did rise near 1s for about 5% of the time. Nonetheless very a lot usable.

I additionally needed to run intense looking subsequent to 4K streaming and the previous didn’t have that a lot of an influence on the latter. Then once more, the latency will nonetheless make issues unusable.

The extreme looking graph exhibits an inclination in the direction of 1.3 seconds on two shoppers which was regarding, however the remainder did alright.

After that, I made a decision to go away out the ZimaBoard and run numerous kinds of visitors on the remainder of the shoppers, and that does embody downloading as nicely. The concept is to obtain a 10MB file repeatedly on a few shoppers. And the result’s, nicely, as anticipated.

The 2 downloading shoppers shortly rose above 400ms and so did the 4K streaming consumer. The 2 intense looking shoppers did OK. After checking the NWA110BE efficiency, it does appear to be it did a bit higher, though the latency remains to be too excessive for consolation.

Subsequent, I restricted the downloading visitors to at least one consumer and the latency did get higher, staying beneath 250ms for about 95% of the time and one 4K streaming consumer additionally stayed close to 100ms which is healthier than earlier than. However nonetheless just about unusable.

So we have to restrict the consumer gadgets to a few and see if that makes a distinction. Unusually, it didn’t.

And I’ve seen one thing related after I examined the Zyxel NWA110BE.

So, I made a decision to alter the downloading file to 1MB. This did the trick and we will see a latency close to 50ms throughout the board.

And I’ve additionally included VoIP visitors this time which was dealt with pretty nicely. Lastly, I needed to obtain the 10MB file on all 5 consumer gadgets and you’ll see the consequence for your self.

The MLO Efficiency

It’s very good to see that MLO is part of the entry-level entry factors contemplating how lengthy it took to be made usable from each the consumer and the system stage. Some WiFi 7 router producers are nonetheless taking part in round, which is why a devoted entry level is nearly all the time the higher possibility. And it’s not that costly both, you simply want a change and a gateway, each will be cheaper. Anyway, let’s take a look at the MLO efficiency of the EnGenius ECW516L.

I suppose it’s not a significant acquire close to the entry level, however, contemplating that we initially obtained 0Mbps on the farthest level, we do now get to go farther away with the consumer. And that’s true each upstream and downstream.

I’ve additionally ran some FLENT exams, nothing particular, the default ones and I’ve included right here the outcomes.

Certain, the NWA110BE had fewer configurations out there, however I nonetheless suppose the ECW512L carried out erratically in a few of these graphics.

The Standalone Mode

There isn’t a lot o discover relating to the stand-alone mode of the EnGenius ECW516L. Certain, it’s there, however it is vitally restricted when it comes to each monitoring attain and particularly the out there configuration.

I don’t know for a way lengthy EnGenius intends to assist this mannequin, but when it’s out of the Cloud platform, you then received’t be capable to configure it that a lot in depth.

The Cloud Platform

And that takes us to the EnGenius Cloud platform. The method of including the entry level to the community is just about the usual throughout SMB and above networking gadgets. After which we get entry to the Dashboard the place we will see numerous standing details about the ECW516L and some other EnGenius gadgets that part of the community.

Going to Entry Factors and choosing the AP, we will see devoted standing data and we will do some configuration modifications that can override the adopted settings. It’s additionally doable to take a look at the Diag Instruments which, by default embody Community Actions and the All Channel Utilization. The Dwell Shoppers change into out there when utilizing the Professional subscription.

It’s additionally value mentioning the SSID Listing the place we will change how the Wi-fi performs, together with enabling MLO. There’s additionally a Captive Portal, Entry Management, SPlash Web page, Hotspot 2.0 and Firewall. We are able to additionally make modifications to the Radios, the place the settings are common for all entry factors adopted throughout the community.

The Conclusion

It’s good to see that EnGenius gives an inexpensive WiFi 7 entry level that provides the 6GHz radio alongside 5GHz and a couple of.4GHz (not like the NWA110BE), in addition to MLO. The value tag does imply that the {hardware} is much less potent, so just a few software program options can be lacking from the Cloud platform. Plus the wi-fi efficiency was honest for a smaller community, however once more, it’s probably not a champion at both velocity or protection. It’s a good system providing fairly just a few superior options at an inexpensive value.
