Heavy-duty round connectors for mining and marine use

‘LMG Heavy Obligation’ connectors are constructed round a rugged brass or stainless-steel shell, and sealed to scores from IP67 to IP69K.

“The sealed design may be very sturdy and is ready to stand up to excessive ranges of shock and vibration in demanding operational environments,” claimed the corporate.

Six customary contact preparations are supplied, from 2 to 19 contacts, with scores between 5 and 19A.

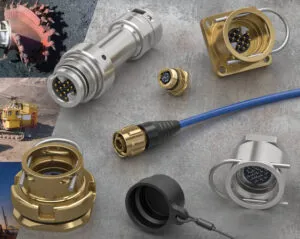

Two varieties can be found: in brass with a threaded coupling, or with a alternative of brass or stainless-steel with a staple coupling (see photograph).

“The traditional screw coupling variations provide a rough ribbed coupling nut that may be simply gripped with protecting gloves, whereas the staple coupling variations work in the same technique to typical hydraulic connectors the place a big steel staple is used to lock and safe the connectors collectively when mated,” in accordance with Weald. “The staple offers a really fast coupling, typically secured with a hammer, and it’s straightforward to see whether or not it’s locked or not, even underneath opposed situations.”

There are in-line, panel and cable mounting kinds, with a spread of backshells.

Equipment embody protecting caps, staples, meeting spanners, and a backshell outlet accent set for screened and unscreened multicore cable or cables with an inside collective display.

Working for practically 50 years, Weald Electronics is a UK connector producer. Its elements can be found by sister firm Lane Electronics (LMG Heavy Obligation hyperlink).
