Semiconductor tools spending is getting into a brand new development cycle formed by geopolitics, sovereignty methods, and know-how roadmaps, regardless of uneven end-market demand

Wafer Fab Tools (WFE) gross sales income is anticipated to develop from $129 billion in 2025 to just about $220 billion by 2031, a 9% CAGR, with cumulative gross sales exceeding $1.2 trillion, studies Yole.

Market drivers are increased tools depth throughout superior logic, DRAM/HBM, NAND, and superior packaging.

Patterning, deposition, etch & clear, and metrology & inspection are all set for robust development by means of 2031, led by Excessive-NA EUV, and rising supplies complexity.

The highest 5 WFE distributors, ASML, Utilized Supplies, Lam Analysis, Tokyo Electron, and KLA account for roughly 70% of income in 2025.

This market construction displays the excessive limitations to entry and lengthy qualification cycles required to scale process-specific tools into high-volume manufacturing.

Even so, this focus is more and more challenged on the margins by Chinese language distributors, whose progress is actual however extremely segment-dependent: robust in deposition, etch, and CMP, but nonetheless negligible in lithography and metrology & inspection instruments.

Strain on chipmaker profitability stays, with dangers of overcapacity, fab redundancy, and low utilization.

“As we speak one out of each three instruments on the planet ships to China,” says Yole’s Paule Durin, “the true query is now not whether or not they purchase; it’s how lengthy earlier than they now not have to.”

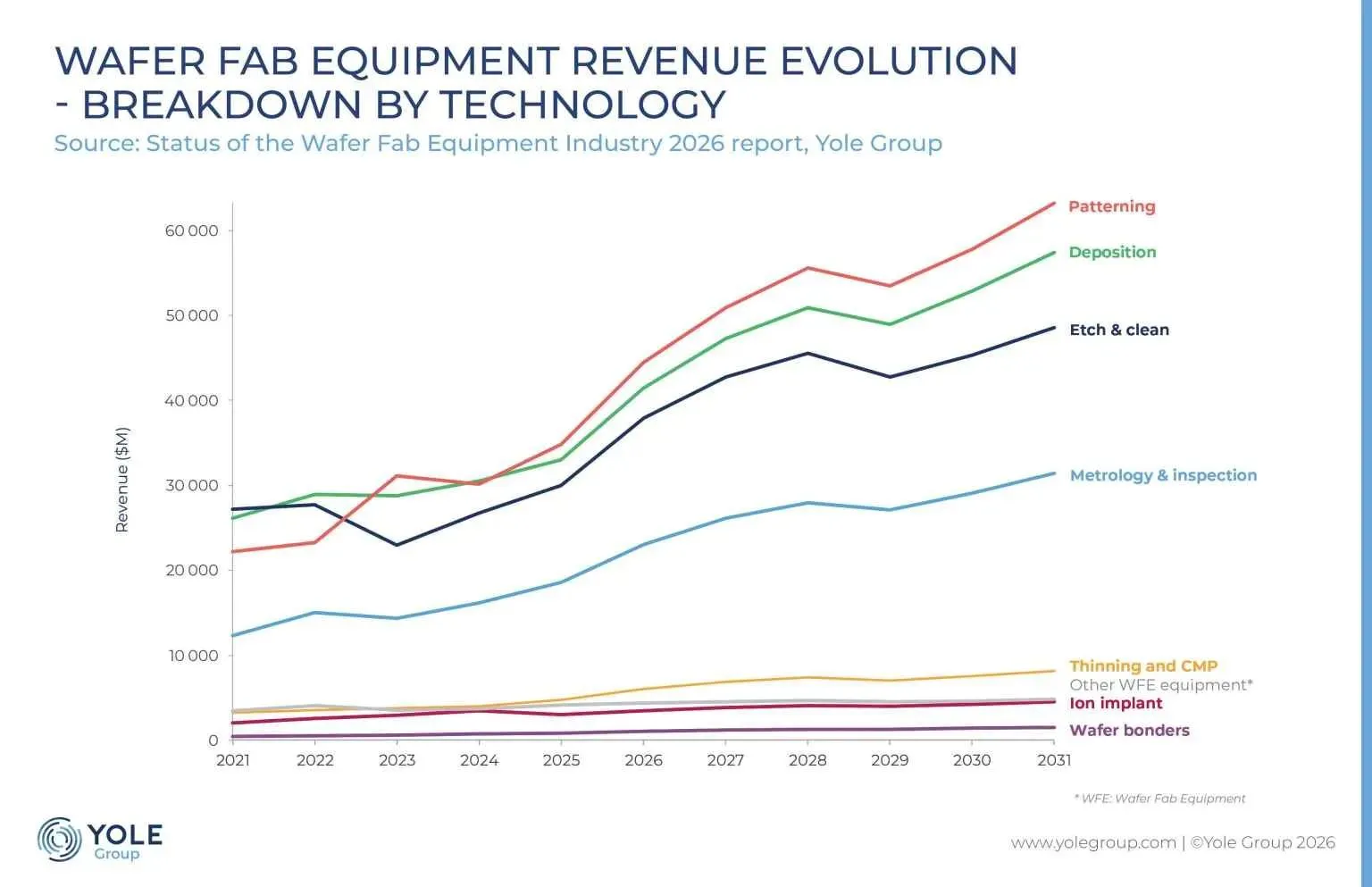

Segmented by tools know-how, patterning led the market at 27% of WFE in 2025 and is forecast to develop at a ten.9% CAGR to roughly $65 billion by 2031, a cumulative worth of about $364.5 billion, pushed by EUV and Excessive-NA preparation.

Deposition, 26% of WFE in 2025, is anticipated to develop at greater than 9% CAGR, whereas etch & clear, 23% in 2025, grows at 8% CAGR.

Metrology & inspection, 14% of WFE in 2025, is about to develop at 9.6% CAGR.

Wafer bonding, although below 1% of the market in 2025, is forecast to outgrow the general market with greater than 10% CAGR to 2031.

“At the forefront, complexity is the true development driver: every transfer towards GAA and 3D stacking provides one other layer to sample, and one other to examine,” says Yole’s Clara Grcevic, “ superior packaging compounds this, as hybrid bonding and 3D stacks bury defects below opaque layers that optical instruments can not see by means of.”

By system software, superior logic (lower than 7nm) represented 27% of WFE income in 2025 and is anticipated to achieve about 34% by 2031.

 This phase is turning into the market’s major development engine, supported by GAA, increased EUV depth, and bottom energy supply.

Superior packaging, round 7% of WFE income in 2025, is forecast to rise to about 9% by 2031, supported by HBM, chiplets, hybrid bonding, and a couple of.5D/3D integration.

This evolution is underlining the business’s shift towards higher-value, extra advanced tools.
